A silicone foam gasket can look perfectly suitable when it is first installed. The cover closes, the material compresses, and there are no visible gaps. The real test comes after the equipment has been running hot for a period of time. Will the gasket maintain contact? Will it recover when the door opens? Will the adhesive stay in place?

These are the questions that matter when choosing silicone foam sheet for high-temperature sealing. Temperature resistance is a starting point, but thickness, compression behavior and installation conditions all influence how well the finished seal performs.

Start with the Temperature at the Seal

The temperature shown on a machine's control panel is not always the temperature experienced by its gasket. A seal near a heating element may face local hot spots, while one mounted outside an insulated chamber may operate at a considerably lower temperature.

Before selecting a material, establish the normal temperature at the sealing surface, the highest temperature it may reach and how long those peaks last. Equipment that stays hot throughout a shift places different demands on a gasket from equipment that heats up briefly and then cools down.

When reviewing a silicone foam sheet, check whether the stated temperature limit applies to continuous operation or short exposure. Also ask what happens to the material after heat aging. A sheet may withstand the heat yet gradually lose the recovery needed to maintain a seal.

Open Cell or Closed Cell?

For applications where the gasket needs to restrict dust or moisture, closed cell silicone foam is generally the first option to consider. Its predominantly enclosed cell structure makes it more suitable for this purpose than an open cell material.

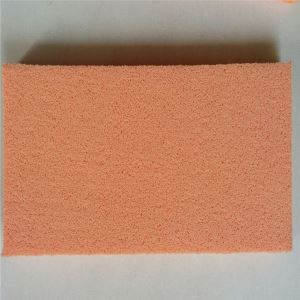

Open cell silicone foam is more relevant where airflow, breathability or a particular cushioning response is required. It should not be selected as a moisture barrier simply because it feels soft and compresses easily.

The distinction matters when ordering. Materials described as "silicone foam" or "silicone sponge" can have different structures, so confirm the actual grade rather than relying on the product name.

Closed cell material also needs a suitable gasket design. Joints, corners, cut edges and uneven compression can still create leakage paths. Any required water or dust protection should be checked on the assembled equipment.

Match the Thickness to the Gap

A thicker sheet does not automatically produce a better seal. If the gasket is too thick, the cover may become difficult to close, or the material may be compressed excessively around fasteners. If it is too thin, it may leave gaps where the surfaces are uneven.

Start with the distance between the mating surfaces when the equipment is closed. Allow for variation across the flange and between production units.

For example, a 6 mm sheet compressed to 4.5 mm is under 25% compression. That calculation is useful for describing the installation, but the acceptable compression range must come from the selected material's data.

On a lightweight cover, closing force is particularly important. A gasket that requires too much force can distort the panel before it compresses evenly. Increasing latch pressure may make the problem worse rather than improve the seal.

Look Beyond Density and Softness

Buyers often compare silicone foam sheets by density or by squeezing a sample by hand. Both can help with an initial assessment, but neither tells you enough about sealing performance.

Compression force deflection shows how much force is needed to compress a material by a specified amount. This helps determine whether the gasket will work with the available clamps, latches or bolts.

Compression set addresses a different question: how much permanent deformation remains after the material has been held under compression and allowed to recover?

For a hot equipment door that opens regularly, recovery is especially relevant. A gasket that remains flattened may no longer follow changes in the gap or press firmly against the mating surface.

When comparing compression set results, check the test temperature and duration. Figures obtained under different conditions are not directly comparable.

Consider What Else the Gasket Will Contact

A high-temperature seal rarely encounters heat alone. Cleaning fluids, condensation, oils or process chemicals may also reach the gasket.

Give the supplier the actual exposure details. "Used in a hot environment" is less useful than knowing that a gasket operates in dry air, is washed daily with a particular cleaner or occasionally contacts oil.

Dry-air temperature resistance should not be used to judge performance in steam or hot liquids. Chemical compatibility also depends on the substance, concentration, temperature and exposure time. In some applications, a different rubber material may be more appropriate.

Check the Adhesive Backing

Adhesive backing makes a gasket easier to position, especially on vertical surfaces or around a large cover. However, the adhesive must be checked separately from the silicone foam.

The foam may tolerate the operating temperature while the adhesive softens or loses its bond. Surface condition matters too: oil, dust, coatings and rough finishes can affect adhesion.

Confirm whether the backing is intended only to hold the gasket during assembly or to provide lasting retention. Test it on the same surface finish used in production, particularly where repeated heating and cooling are involved.

Test a Finished Gasket Before Ordering in Quantity

A small material sample is useful, but a gasket cut to the final shape provides a more meaningful trial. It reveals problems that may not appear when testing a square piece of sheet, such as tearing around bolt holes, movement at corners or uneven compression along a long flange.

Run the equipment through its normal heating cycle and inspect the seal after cooling. If the cover opens frequently, repeat that operation during the trial. Check for leakage, permanent flattening, cracking and adhesive movement.

It also helps to decide in advance what counts as acceptable performance. Depending on the equipment, that may be a leakage limit, a closing-force requirement or satisfactory recovery after a defined number of cycles.

Choosing a Sheet for Your Application

The most useful starting information is straightforward: operating temperature, sealing gap, gasket dimensions, exposure conditions and available closing force. A drawing or sample of the existing seal can make the discussion more precise.

Eshine Rubber supplies silicone foam sheets and silicone sealing products for industrial applications. To discuss a high-temperature sealing requirement, share your equipment details, dimensions and working conditions so that suitable material options can be considered for sample testing.
